Ningbo Yige Magnetics Co., Ltd
 |
YIGE
8505909090

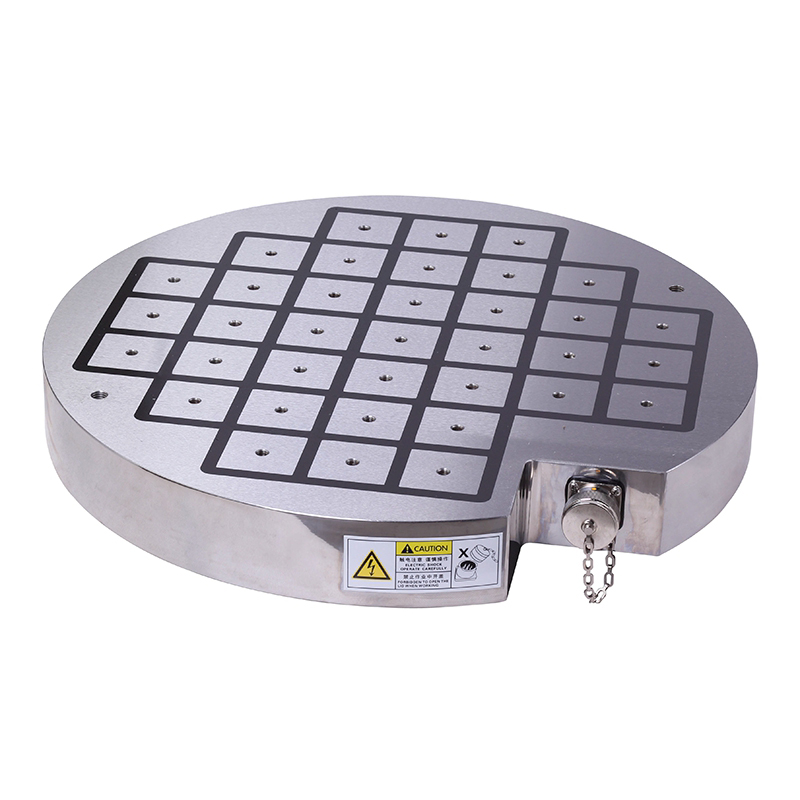

Description :
1.Comprising 50mm*50mm poles with a force of 16-17kgf/cm2.
2. It is possible to predetermine the force generated by counting the number of poles,
work piece gripping at least 6 pole contact faces.

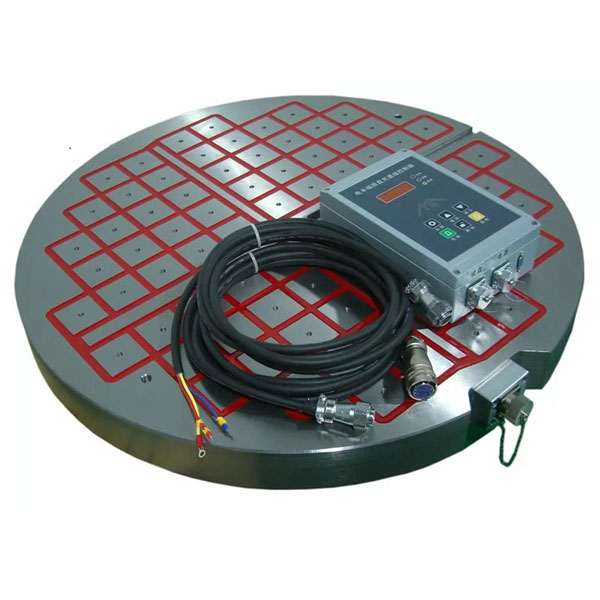

3.Controller do the Magnetizing or demagnetizing in 0.5~ 3 seconds.
4.Chuck is tested for Slippering force, Waterproof test, Temperature rise test, Electrical & Demagnetizing tests
Use:
1.Widely used in a variety of machine tool rotary working platform, such as CNC five-axis machining center, horizontal Lathe and big boring machine, horizontal machining center, deep hole drilling, drilling and milling machine and six-axis deep hole drilling, etc.
2.Best used for the workpieces at least 250*250 mm and 10 mm thick.used for small, medium dimensions with normal operating air gaps and thinner workpieces.
Standard Features and Benefits:
1．Flexibility :
• Allow single set-up machining with 5-sided accessibility
• workpieces larger than the table are machinable
2．Safety
• No electric power supply during clamping.
• Constant and uniform magnetic power over entire area.
• No temperature rise in operation. so no impact on precision and work piece deformation due to temperature rise.Can used for long time.
3．Efficient
• Easy and quick position,reduce set-up time and increase available machine time.
• High accuracies and tolerances
4．Cost-effectiveness
• no maintenance
• no machine modifications
• reduced tool consumption

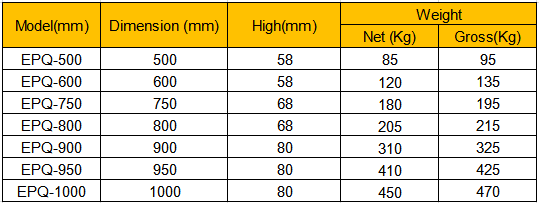

Specs:

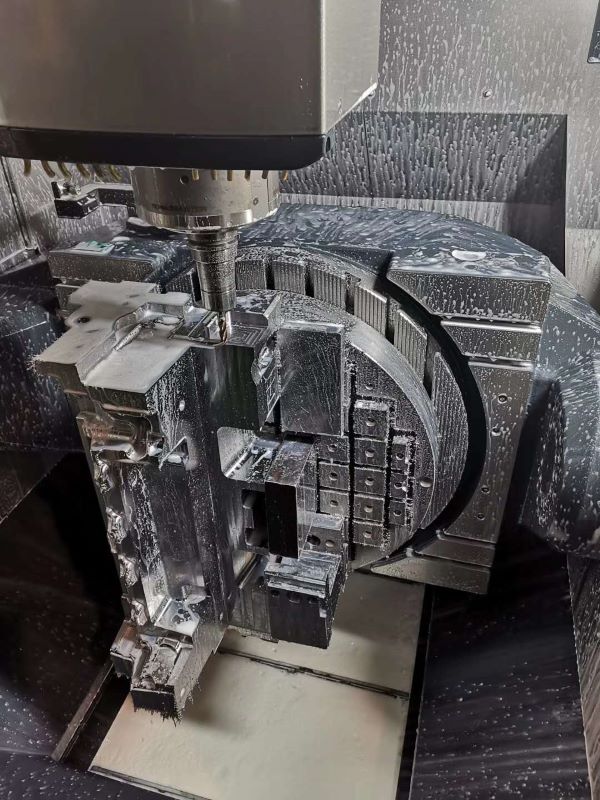

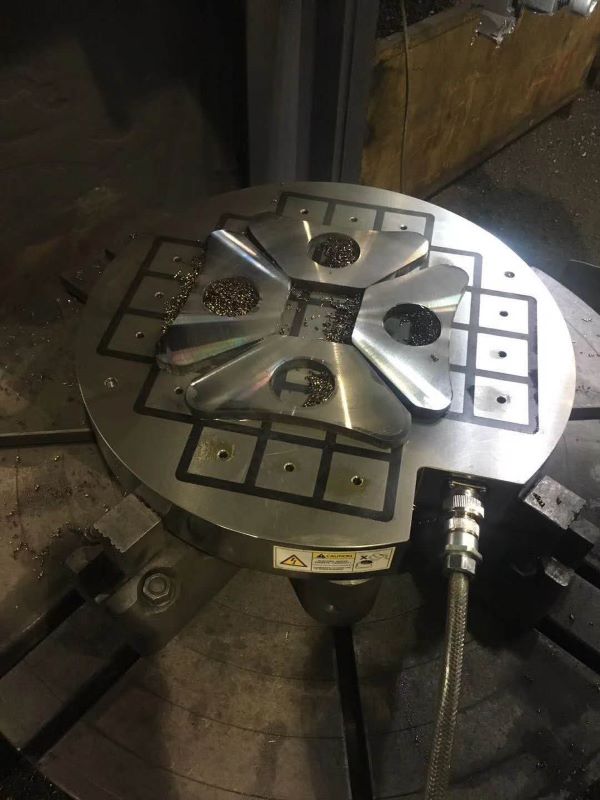

Aplication:
