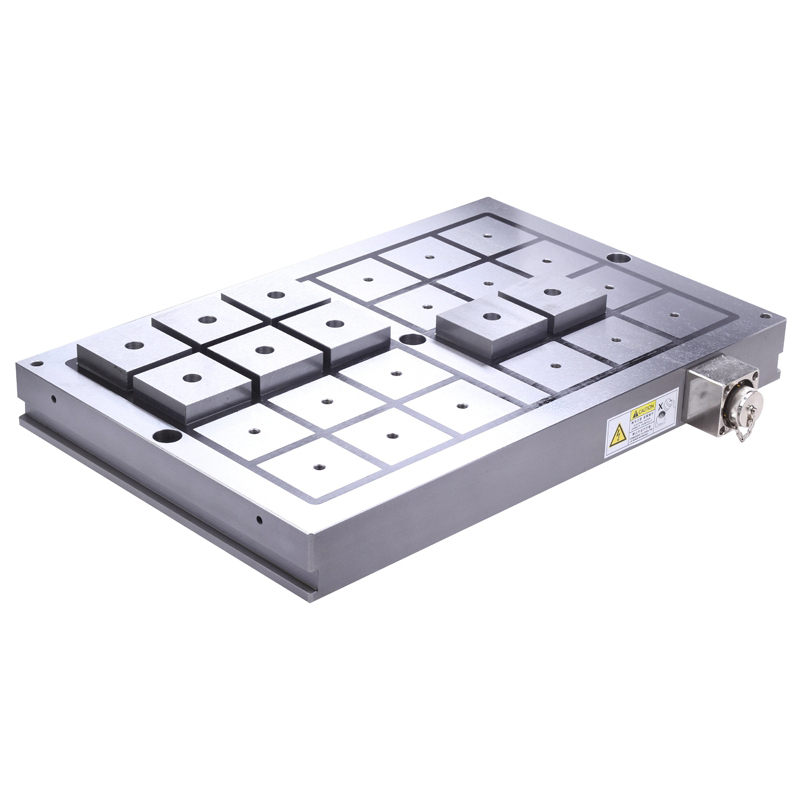

Electro Permanent Magnetic Chuck(EP75 Series)

Place of Origin: Zhejiang,China (Mainland)
Pole size: 75mmX75mm
Nominal holding force: 16-18 kgf/cm2
Processing: Milling and CNC machining
Use: Various dimensions
Availability:
Electro Permanent Magnetic Chuck(EP75 Series)
Electro Permanent Magnetic Chuck(EP75 Series)
  • YIGE

  • 8505909090

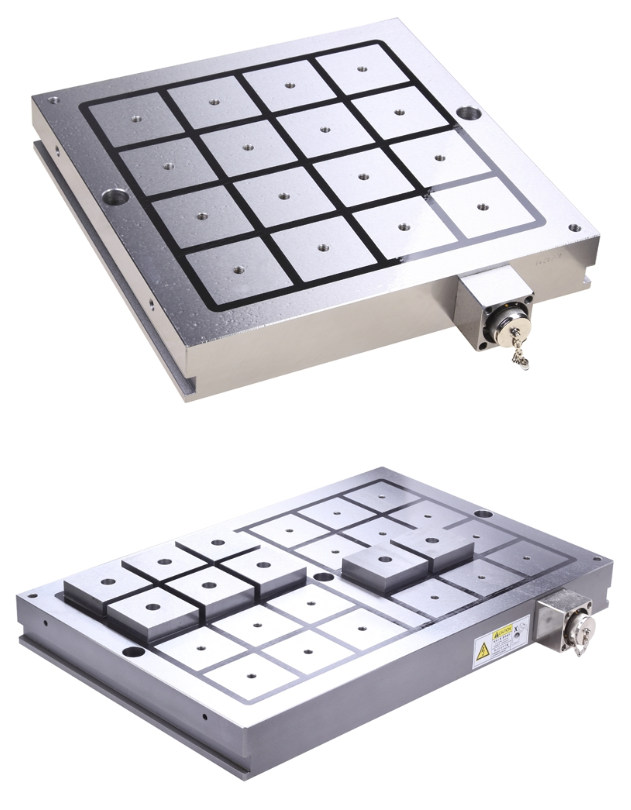

3_副本



Description :

1.Comprising 75mm*75mm poles with a force of 16-17 kgf/cm2.

2. It is possible to predetermine the force generated by counting the number of poles.

work piece gripping at least 4 pole contact faces.

3.Controller do the Magnetizing or demagnetizing in 0.5~3 seconds.

4.Chuck is tested for Slippering force, Waterproof test, Temperature rise test, Electrical & Demagnetizing tests


Use:

1.Used for normal and heavy duty drilling, milling, and CNC machining center

2.Best used for the workpieces at least 400*400 mm and 18 mm thick,Ideal for general pieces of various dimensions with normal operating air gaps and medium thicknesses


Standard Features and Benefits:

1.Flexibility :

• Allow single set-up machining with 5-sided accessibility

• workpieces larger than the table  are machinable

2.Safety

• No electric power supply during clamping

• Constant and uniform magnetic power over entire area.

• No temperature rise in operation. so no impact on precision and work piece deformation due to temperature rise.Can used for long time.

3.Efficient

• Easy and quick position,reduce set-up time and increase available machine time.

• High accuracies and tolerances

4.Cost-effectiveness

• no maintenance

• no machine modifications

• reduced tool consumption



Specs:

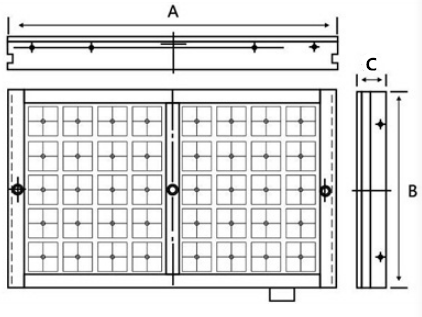

图纸_副本

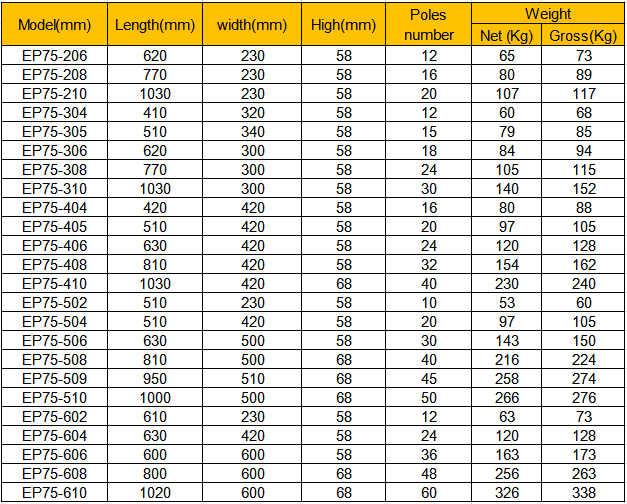

EP75

Other size on request


Aplication:

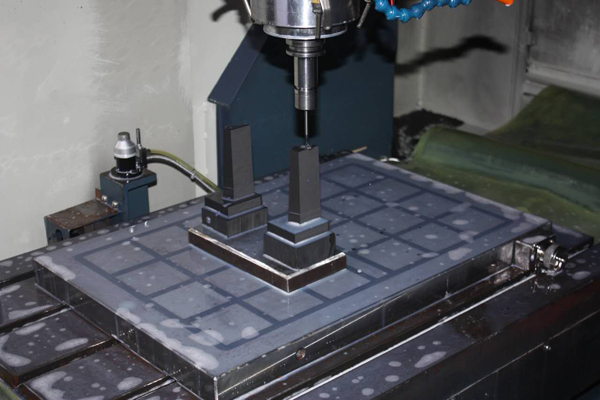

EP75-1

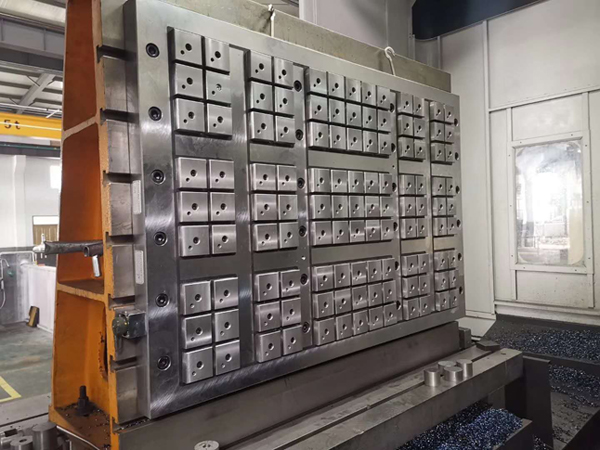

EP75-2
