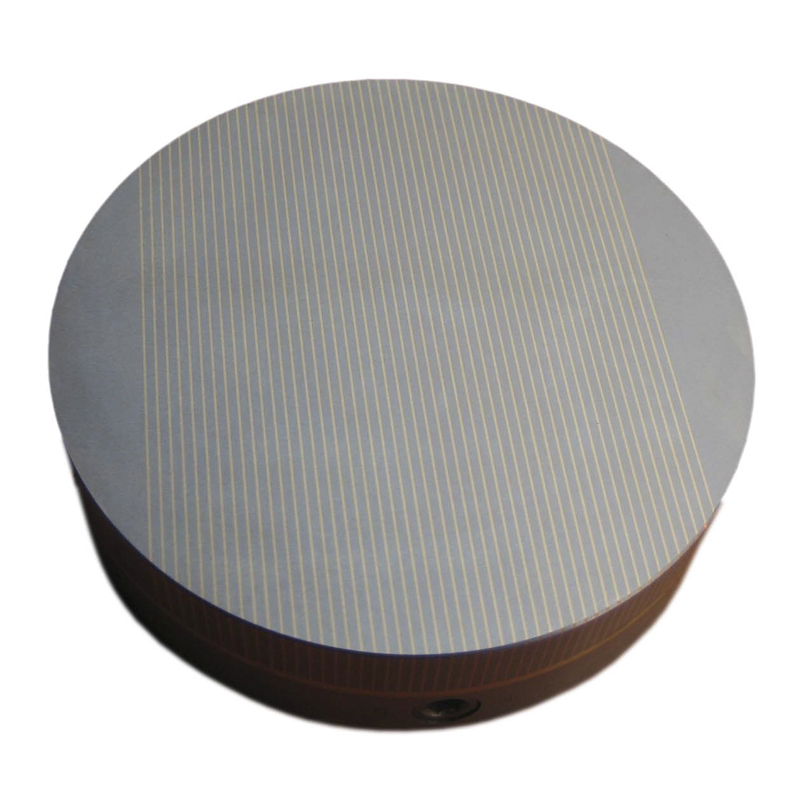

Fine Pole Round Permanent Magnetic Chuck ( RMC M Series )

Use:

1.Suitable for grinding and EDM application.
2.Best for small,medium and thinner workpiece.

Feature:

1.Permanent magnetic chuck with Nedymium magnets,strong magnetic force and less remaining magnetism

2. ON-OFF control by means of hand lever.In the OFF position, a weak opposing

field eases the removal of the workpiece

3.Parrallel fine pole pitch:2 mm(1.5mm of steel+0.5mm of brass)

4.Nominal holding force:100N/cm2

5.Pole plate wearing limit:5mm

6.Magnetic field height: 8mm

7.coolant and water proof structure

Spec:

Other size on request
