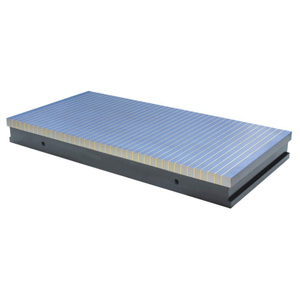

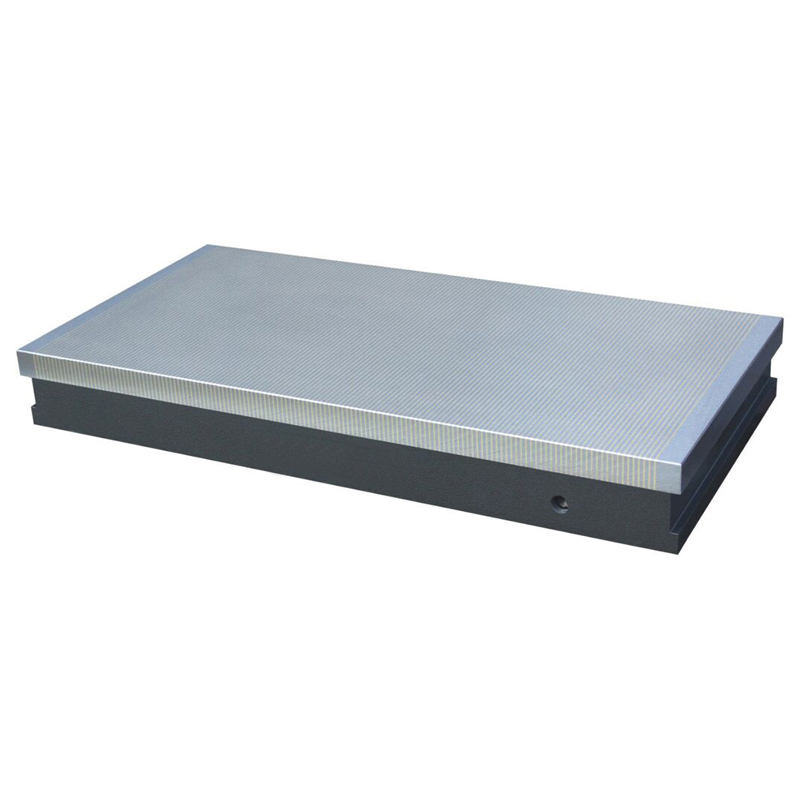

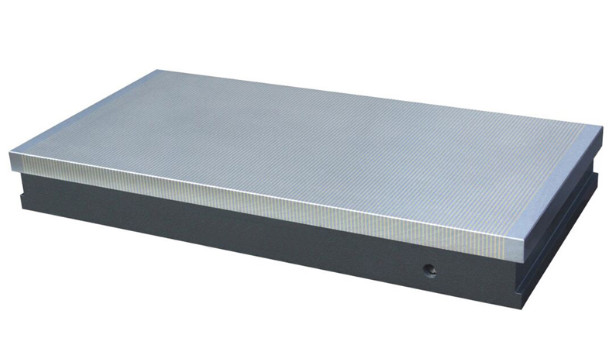

The Fine Pole Electromagnetic Chuck is special for grinding the small workpiece.
The workpiece min size can be 5mm. The pole pitch of the electro magnetic chuck can be 1+3 EMB series or 0.5+1.5mm EME series
Features:
- With delicate design, it suitable for all kinds of surface grinding machine. High precision. Mainly rely on workholding work-piece,to avoid damage the surface.
- Improve the grinding efficiency 80%.And guarantee quality. Even holding force, reliable localization and easy to operate, can be installed on the flat-stone mill for compatible application.
- Few mechanical and thermal deformation. Fine pole divisions - for more uniform magnetic holding of small parts
- Low height of the magnetic chuck for increasing clearance of larger workpieces, and makes it light and much grinding space.
- Good stabilization, powerful attraction and few remanence. Powerful holding over entire electromagnetic chuck for grinding surface.

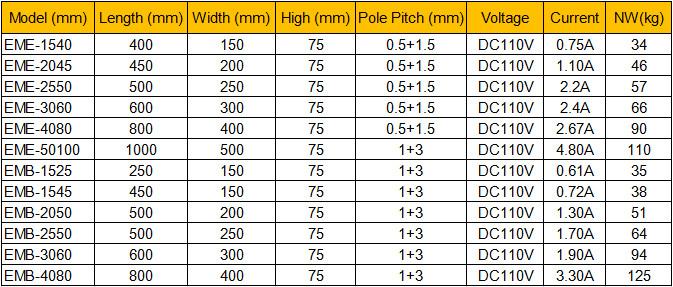

Spec:
Other size on request
The Fine Pole Electromagnetic Chuck is special for grinding the small workpiece.
The workpiece min size can be 5mm. The pole pitch of the electro magnetic chuck can be 1+3 EMB series or 0.5+1.5mm EME series
Features:
- With delicate design, it suitable for all kinds of surface grinding machine. High precision. Mainly rely on workholding work-piece,to avoid damage the surface.
- Improve the grinding efficiency 80%.And guarantee quality. Even holding force, reliable localization and easy to operate, can be installed on the flat-stone mill for compatible application.
- Few mechanical and thermal deformation. Fine pole divisions - for more uniform magnetic holding of small parts
- Low height of the magnetic chuck for increasing clearance of larger workpieces, and makes it light and much grinding space.
- Good stabilization, powerful attraction and few remanence. Powerful holding over entire electromagnetic chuck for grinding surface.
Spec:
Other size on request
