Ningbo Yige Magnetics Co., Ltd
 |
YIGE
8505909090
USE:
Suitable for grinding work and thin work piece
min. thickness of workpiece: 8 mm
Nominal holding force:110 N/cm
For grinding application of all sizes of jobs.

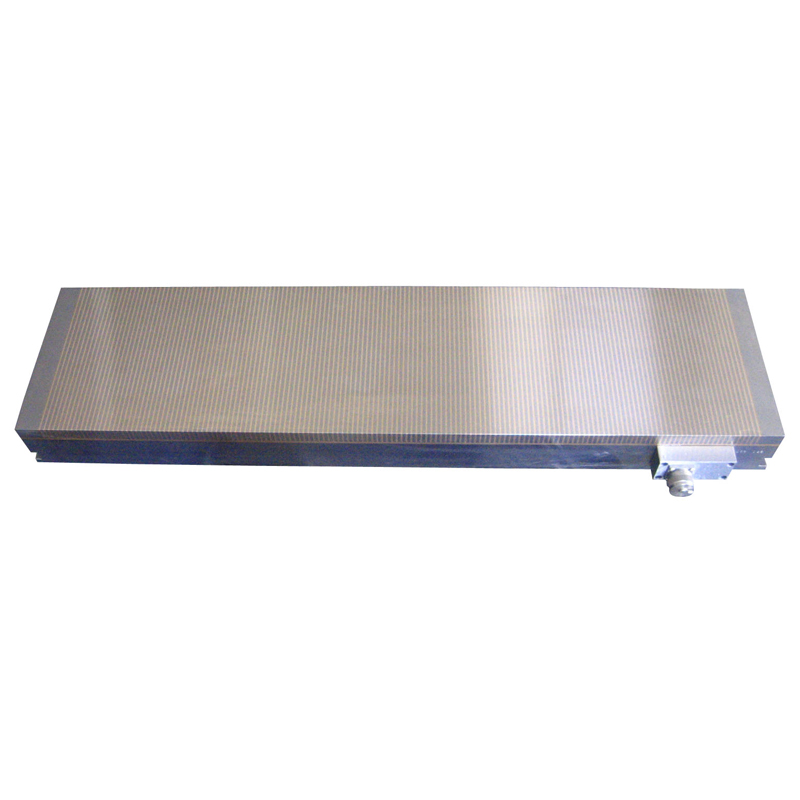

Electro-permanent magnetic chucks are suitable for horizontal spindle surface grindingmachines as the main cutting thrust is towards the length of the chuck, poles atrightangle of the wheel give more gripping of the job.
Features:
Variable power makes it possible to adjust the magnetic force.
No heat build up or deformation provides high precision accuracy.
No electricity required to keep the electro-permanent magnetic chuck on.
Electro-pemanentmagneticchuckcanbe easily fixed to the surface grinder.
Large area can be arranged by multiple mounting of EPM chucks side by side which can be operated by a single controller.
Special purpose EPM chucks can also be designed to suit particular applications.
Pole pitch of 2mm(1.5+0.5) can be made at extra cost.

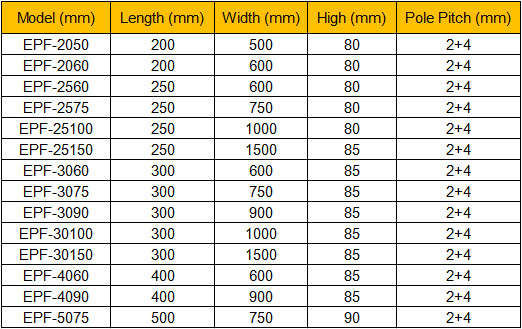

Spec:
Other size on request
USE:
Suitable for grinding work and thin work piece
min. thickness of workpiece: 8 mm
Nominal holding force:110 N/cm
For grinding application of all sizes of jobs.

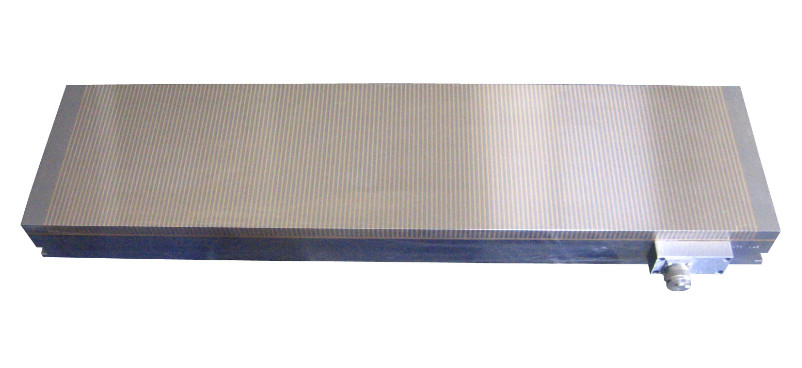

Electro-permanent magnetic chucks are suitable for horizontal spindle surface grindingmachines as the main cutting thrust is towards the length of the chuck, poles atrightangle of the wheel give more gripping of the job.
Features:
Variable power makes it possible to adjust the magnetic force.
No heat build up or deformation provides high precision accuracy.
No electricity required to keep the electro-permanent magnetic chuck on.
Electro-pemanentmagneticchuckcanbe easily fixed to the surface grinder.
Large area can be arranged by multiple mounting of EPM chucks side by side which can be operated by a single controller.
Special purpose EPM chucks can also be designed to suit particular applications.
Pole pitch of 2mm(1.5+0.5) can be made at extra cost.
Spec:
Other size on request
