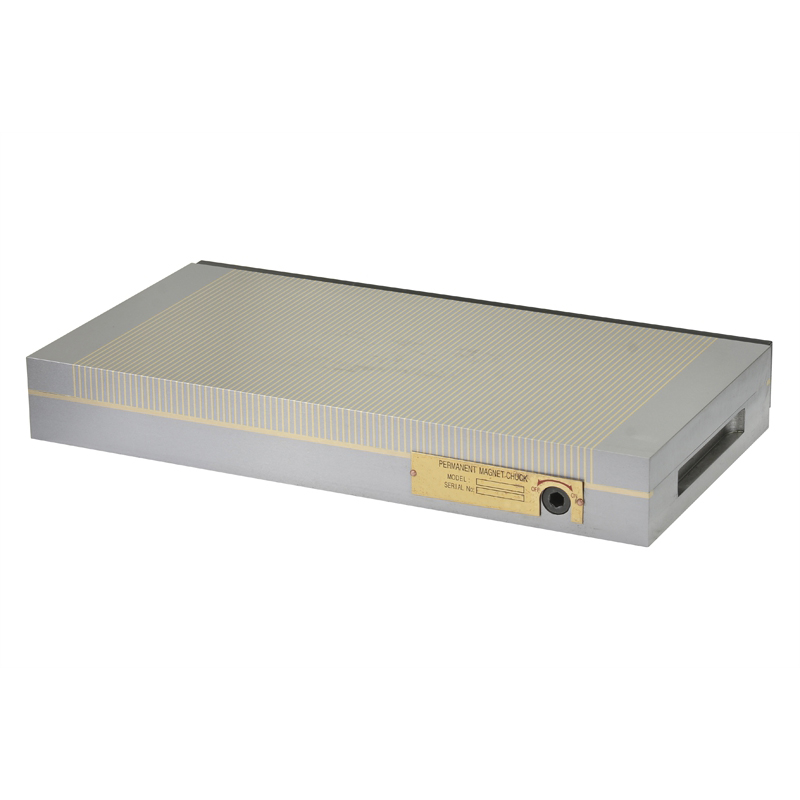

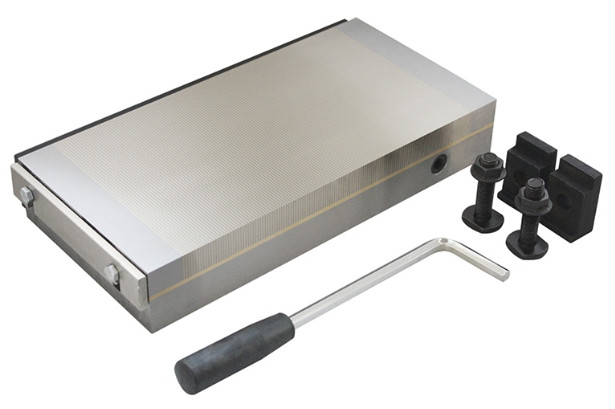

Standard Permanent Magnetic Chuck (PMC S Series)

Use:

1.Suitable for grinding.
2.Best for larger workpiece

Feature:

1.Permanent magnetic chuck with Nedymium magnets,strong magnetic force and less remaining magnetism

2.ON-OFF control by means of hand lever.In the OFF position, a weak opposing

field eases the removal of the workpiece

3.Parrallel fine pole pitch:6 mm(4mm of steel+2mm of brass)

4.Nominal holding force:100N/cm2

5.Pole plate wearing limit:5mm
6.Magnetic field height: 6mm

7.coolant and water proof structure

8.parallelism, flatness and squareness 0.005mm/100mm

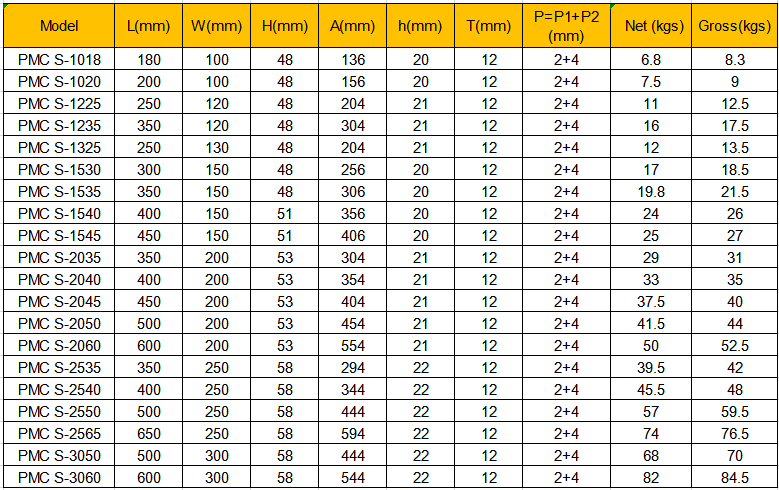

Spec:

Other size on request
