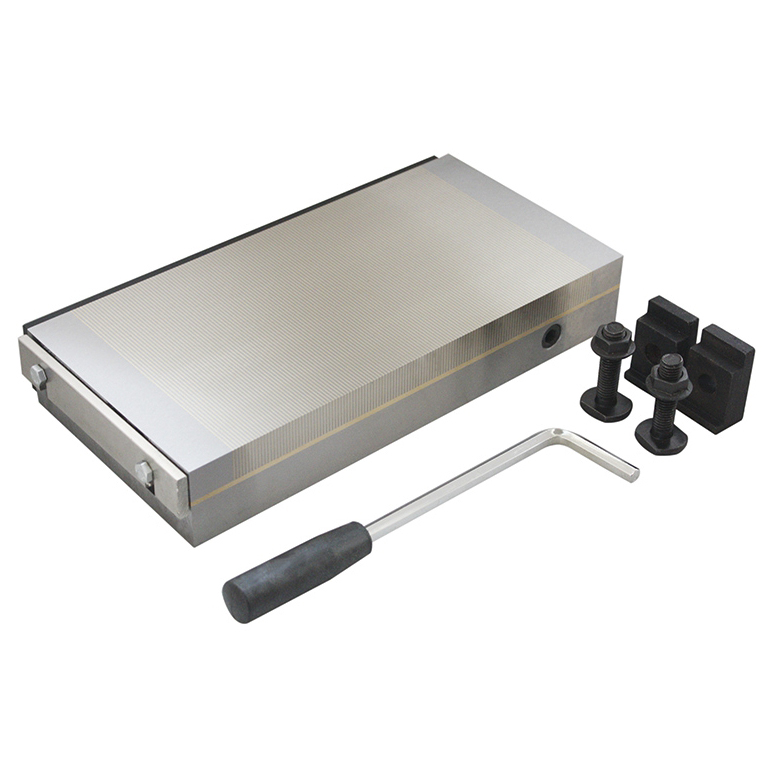

Fine Pole Rectangule Permanent Magnetic Chuck (PMC M Series)

Model: PMC M
Place of Origin: Zhejiang,China (Mainland)
Poles pitch: 0.5mm+1.5mm
Processing: Grinding Machine
Norminal clamping force: 80 N/cm2
Machining workpieces: smaller and thinner workpieces
Structure: Coolant&waterproof
Availability:
  • YIGE
  • 8505909090

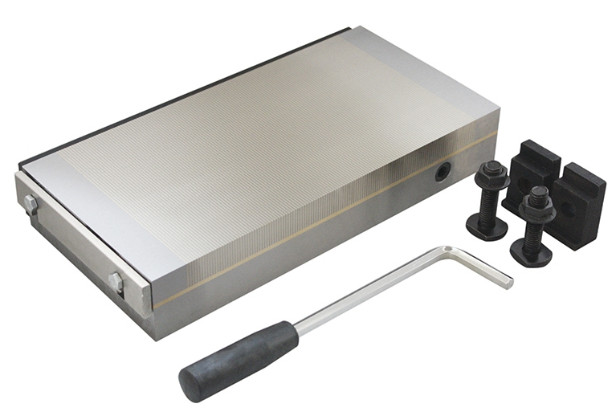

4545_副本


Use:

1.Suitable for heavy and light grinding.

2.Best for smaller medium and larger workpiece and thin workpiece


Feature:

1.Permanent magnetic chuck with Nedymium magnets,strong magnetic force and less remaining magnetism

2.Parrallel fine pole pitch:2 mm(1.5mm of steel+0.5mm of brass)

3.Nominal holding force:100N/cm2

4.Pole plate wearing limit:5mm

5.Magnetic field height: 6mm

6. ON-OFF control by means of hand lever.In the OFF position, a weak opposing

field eases the removal of the workpiece.

7.coolant and water proof structure

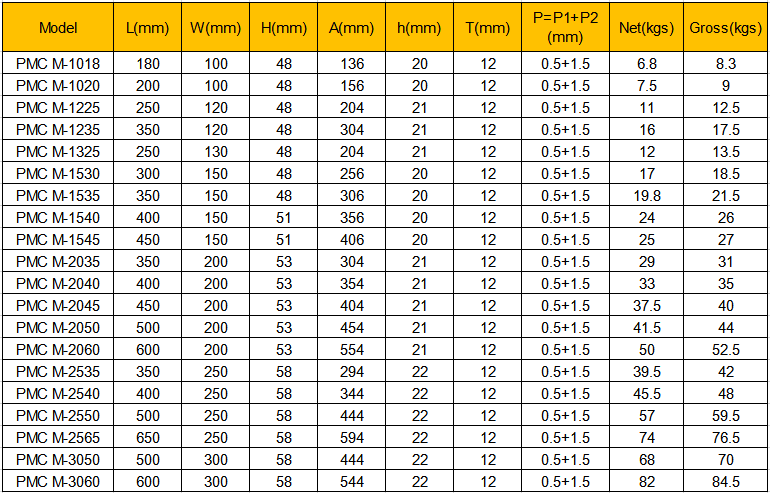

Spec:

PMC M

Other size on request
